Strong Corrosive Liquid Non Contact 26GHz NYRD-TJ-A Radar Water Level Sensor Measurement Transmitter

Name: Strong Corrosive Liquid Non Contact 26GHz NYRDTJA Radar Water Level Sensor Measurement Transmitter
Brand: NUOYING
Price: 199 USD

Best Strong Corrosive Liquid Non Contact 26GHz NYRD-TJ-A Radar Water Level Sensor Measurement Transmitter wholesale

Brand Name : NUOYING

Model Number : NYRD-TJ-A

Certification : IP67

Place of Origin : Shaanxi, China

MOQ : 1pcs

Price : $199~469/pcs

Payment Terms : T/T

Supply Ability : 1000pcs per month

Delivery Time : 5-7 working days

Packaging Details : 40*30*30CM

Warranty : 1 years

Applications : Easy crystallization, condensation, strong corrosive liquid, powder

Measuring range : 40M

Accuracy : ±3mm

Process temperature : -40~130℃

Process pressure : -0.1~2.0MPa

Process connection : Flange/bracket(selective)

Protection class : IP67

Signal output : 4...20mA/RS485

Antenna material : Lens 316L+PTFE

Display : LCD

Power Supply : 24VDC( twe wire, four wire),220VAC

Contact Now

Strong Corrosive Liquid Non Contact 26GHz NYRD-TJ Radar Water Level Sensor Measurement Transmitter

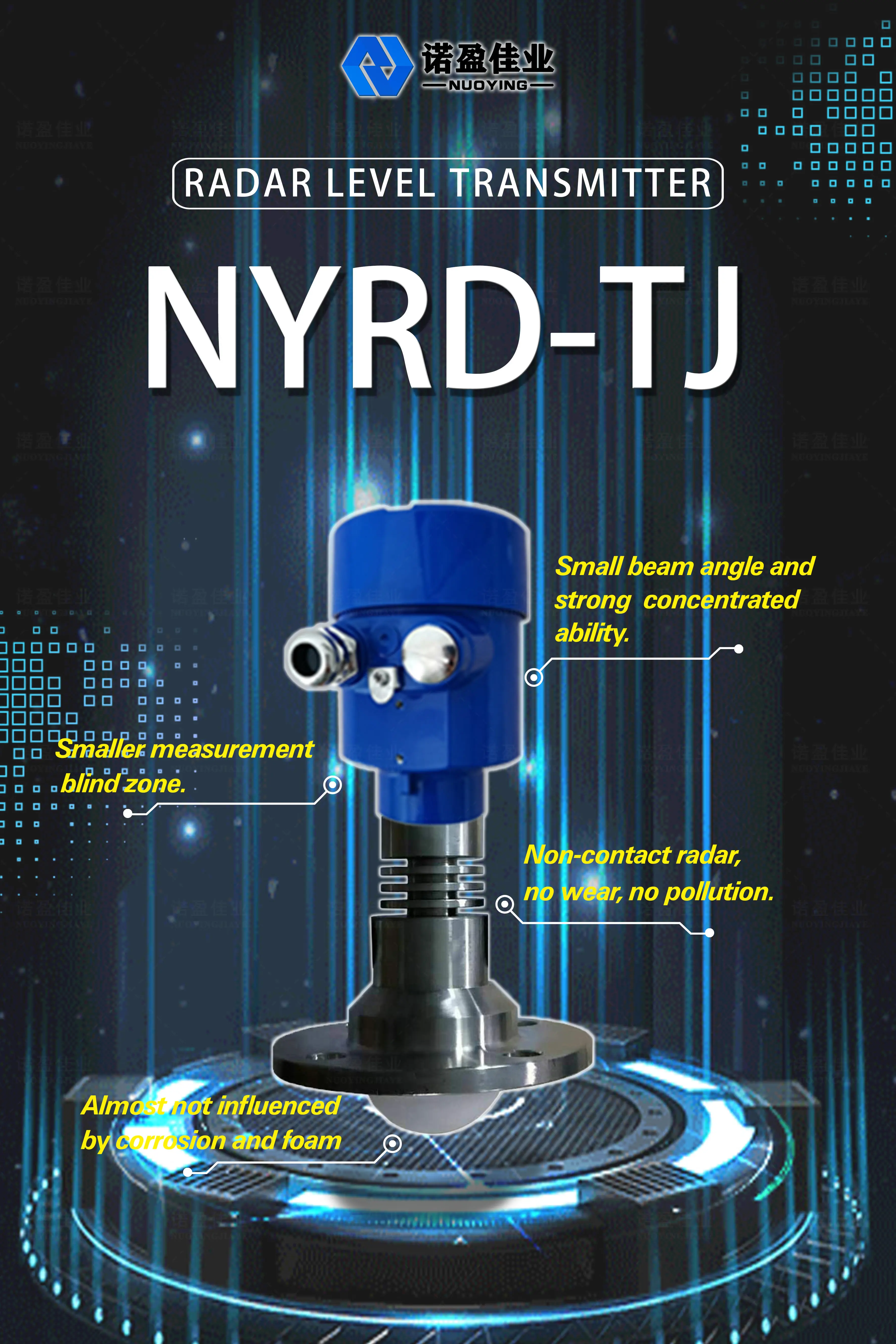

NYRD-TJ-A Radar Level Transmitter Overview

Products Description

Strong Corrosive Liquid Non Contact 26GHz NYRD-TJ-A Radar Water Level Sensor Measurement Transmitter

26GHz NYRD-PB Radar Level Transmitter Working Principle

Radar level meter NYRD80X series sensor is a 26GHz high-frequency radar level measuring instrument with a maximum measuring distance of 80m. The radar object position antenna emits a narrow microwave pulse that is transmitted downward through the antenna. After the pulse wave touches the surface of the measured medium, it is reflected back and received by the antenna system again. The signal is transmitted to the electronic circuit part and automatically converted into object level signal (Because pulses travel so fast, the time it takes for an electromagnetic wave to reach its target and bounce back to the receiver is almost instantaneous).

The datum of measurement: Spiral bottom surface or sealing surface of flange.

Product Parameters

Typical application	Easy to crystallize, dew condensation, toxic, strong corrosion
Antenna material	Lens Antenna, 316L+PTFE (Optional)
Measuring range	40m
Measuring accuracy	0.05%-0.1%F.S
Power supply	24VDC(Two lines, four lines)
Medium temperature	-40~+120℃,-40~+260℃
Process connection	Flange,bracket (optional)
Process pressure	-0.1~2.0MPa

Dimensions of the shell structure of the radar level meter (unit: mm)

There are two types of radar level meter:
One is the cast aluminum shell and the other is a stainless steel case.Customized design can be made according
to customer requirement and site condition.

Product details

Product feature

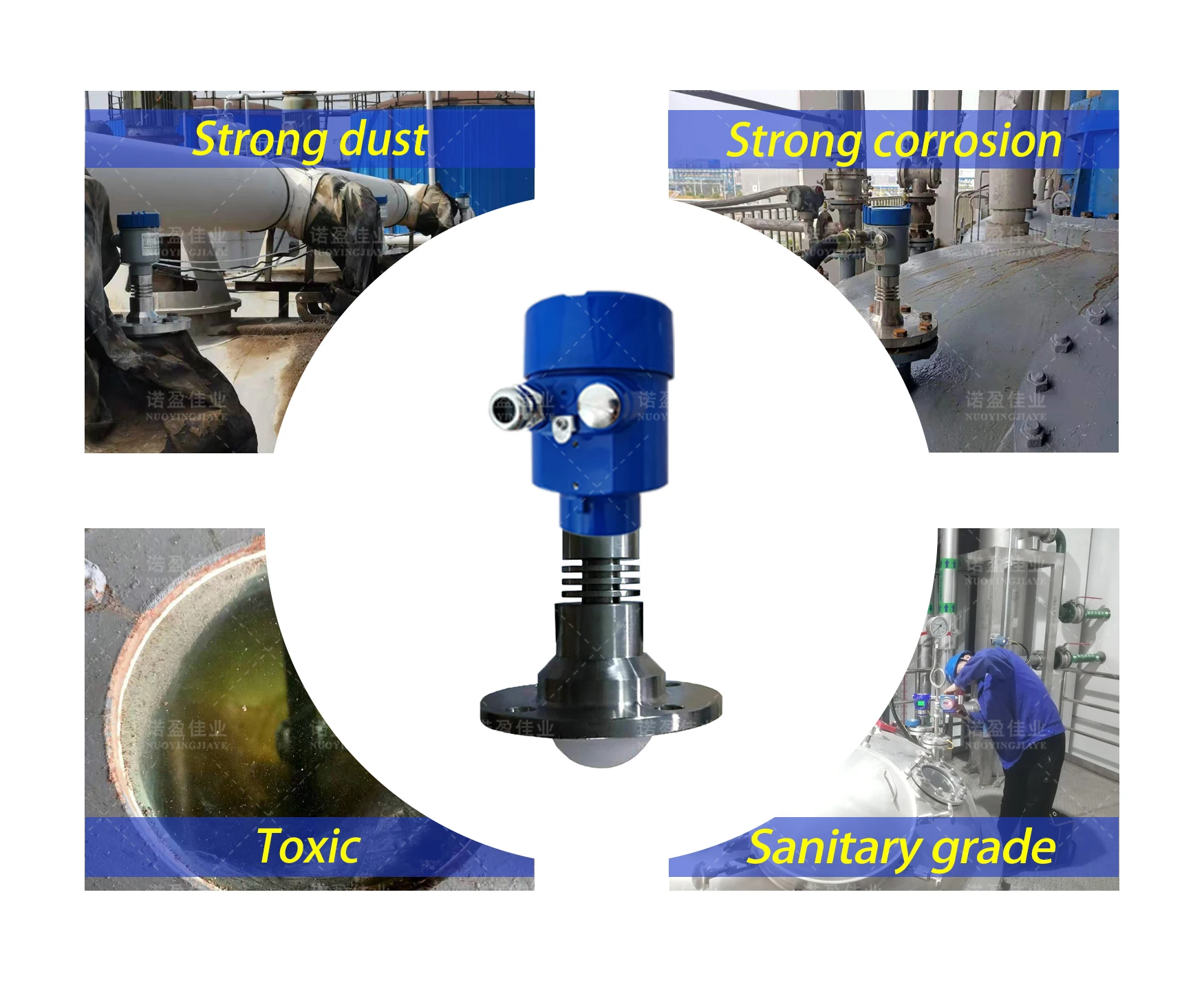

Various application

Strong Corrosive Liquid Non Contact 26GHz NYRD-TJ-A Radar Water Level Sensor Measurement Transmitter Images
