4-20ma Rs485 Long Distance Ultrasonic Water Liquid Level Meter Sensor

Name: 420ma Rs485 Long Distance Ultrasonic Water Liquid Level Meter Sensor
Brand: NUOYING
Price: 55 USD

Best 4-20ma Rs485 Long Distance Ultrasonic Water Liquid Level Meter Sensor wholesale

Brand Name : NUOYING

Model Number : NYCSUL-502

Certification : CE, SIL, ATEX

Place of Origin : Xi'an,Shaanxi,China

MOQ : 1pcs

Price : $55 to $95/pcs

Payment Terms : T/T

Supply Ability : 1000pcs per month

Delivery Time : 5-7 working day

Packaging Details : 40*30*30cm

Grade : Industrial

Warranty : 12 months

Customized support : OEM, ODM

Applications : Liquid (no stirring, bubble, volatilization, etc.)

Measuring accuracy : 0.05%~0.1%F.S

Power supply : 24VDC

Process connection : Thread, flange (optional)

Process temperature : -20~+70℃

Process pressure : -0.1~0.1MPa

Signal output : 4...20mA/HART/RS485/Modbus...

Display : LCD

Measuring range : 0~20m(integrated)，0~40m(split)

Contact Now

4-20ma Rs485 Long Distance Ultrasonic Water Liquid Level Meter Sensor

Nuoying NYCSUL-502 Ultrasonic Water Liquid Level Meter Overview

Products Description

4-20ma Rs485 Long Distance Ultrasonic Water Liquid Level Meter Sensor

Ultrasonic Level Meter/ultrasonic level gauge

NYCSUL two-wire ultrasonic level meter is an intelligent non-contact level measuring instrument. The product has automatic power adjustment, gain control, temperature compensation, adopts advanced detection and calculation technology, and has the function of suppressing interference signals, thereby fundamentally improving the measurement accuracy of the instrument and ensuring the authenticity of the measurement results. The product can be widely used for liquid level measurement of various liquids, and can also be used for distance measurement.

Product Parameters

天线材质 Antenna material	PP,PVC,PTFE,304
测量范围 Measuring range	0～20m(一体),0～40m(分体) 0～20m (integrated), 0～40m (split)
测量精度 Measuring accuracy	<0.25%(量程<20米),<0.5%(量程>20米) ＜0.25%(range＜20m) ,＜0.5%(range＞20m)
过程温度 Process temperature	-20～+70℃
过程压力 Process pressure	-0.1～0.1MPa(常压) -0.1～0.1MPa (normal pressure)
过程连接 Process connection	螺纹,法兰(可选) Thread, flange (optional)
供电电源 Power supply	24VDC
信号输出 Signal output	4...20mA/HART/RS485/Modbus...
显示模式 Display mode	液位,距离(空高) Liquid level, distance (height)

Product details

Product feature

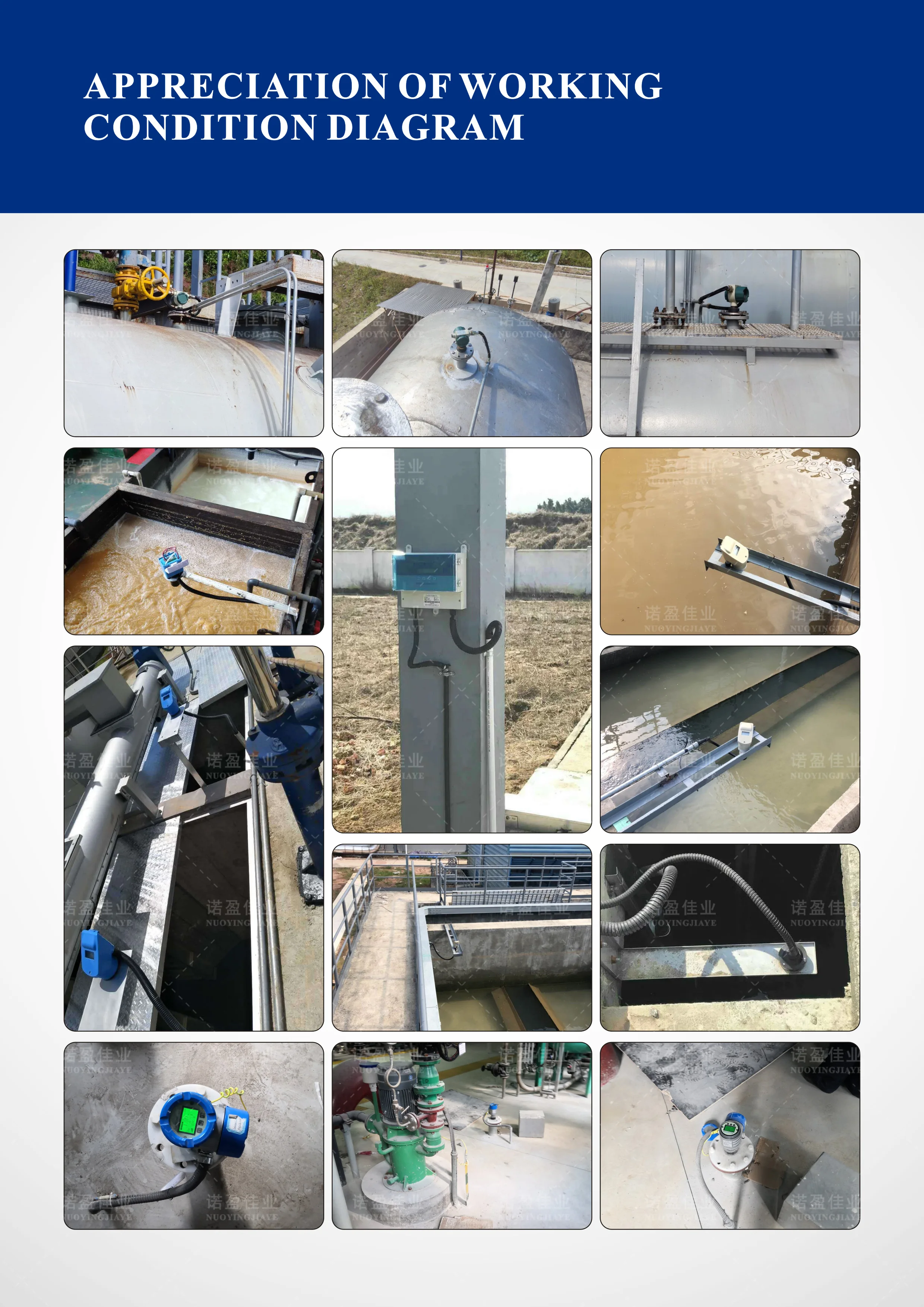

Various application

Cooperation customers

Product certificate

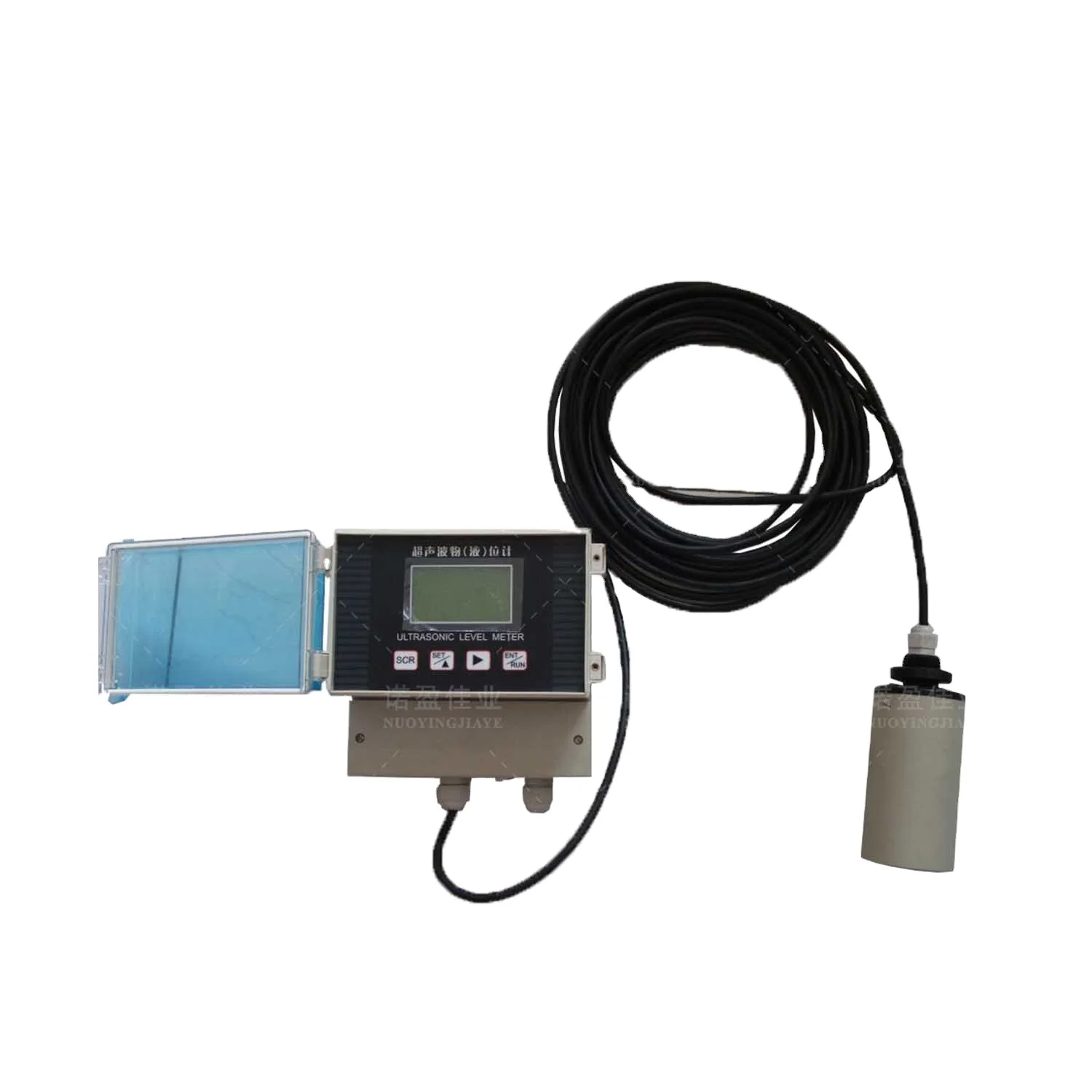

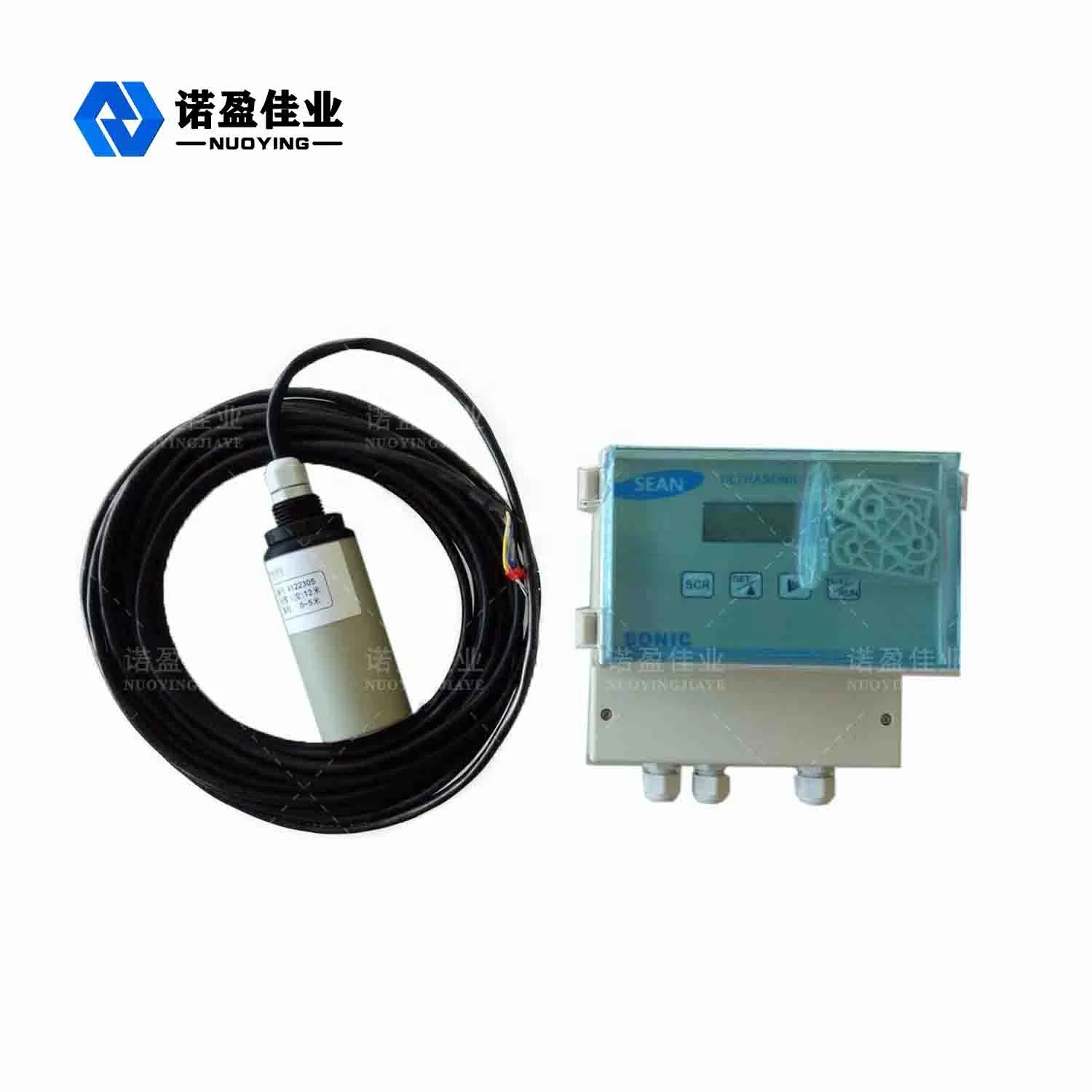

4-20ma Rs485 Long Distance Ultrasonic Water Liquid Level Meter Sensor Images
