Nuoying NYDR RF Capacitive liquid level Switch Electric shock capacity Single point 250V8A Multi-point 250V 3A

Name: Nuoying NYDR RF Capacitive liquid level Switch Electric shock capacity Single point 250V8A Multipoint 250V 3A
Brand: NUOYING
Price: 259 USD

Best Nuoying NYDR RF Capacitive liquid level Switch Electric shock capacity Single point 250V8A Multi-point 250V 3A wholesale

Brand Name : NUOYING

Model Number : NYDR

Certification : CE, SIL, ATEX

Place of Origin : Xi'an,Shaanxi,China

MOQ : 1pcs

Price : $259 to $299/pcs

Payment Terms : T/T

Supply Ability : 1000pcs per month

Delivery Time : 5-7 working day

Packaging Details : 40*30*30cm

Grade : Industrial

Warranty : 12 months

Customized support : OEM, ODM

Applications : Liquid level control

Operating temperature : -40~+130℃, -40~+260℃

Power supply : 24VDC、220VAC

Procedure linkage : thread, flange (optional)

Probe length : 200mm(length can be customized according tosite conditions)

Process pressure : -0.1~1.0MPa

Protection/explosion class : IP67/ExialCT6 (optional)

Dielectric constant : ≥1.6

Contact Now

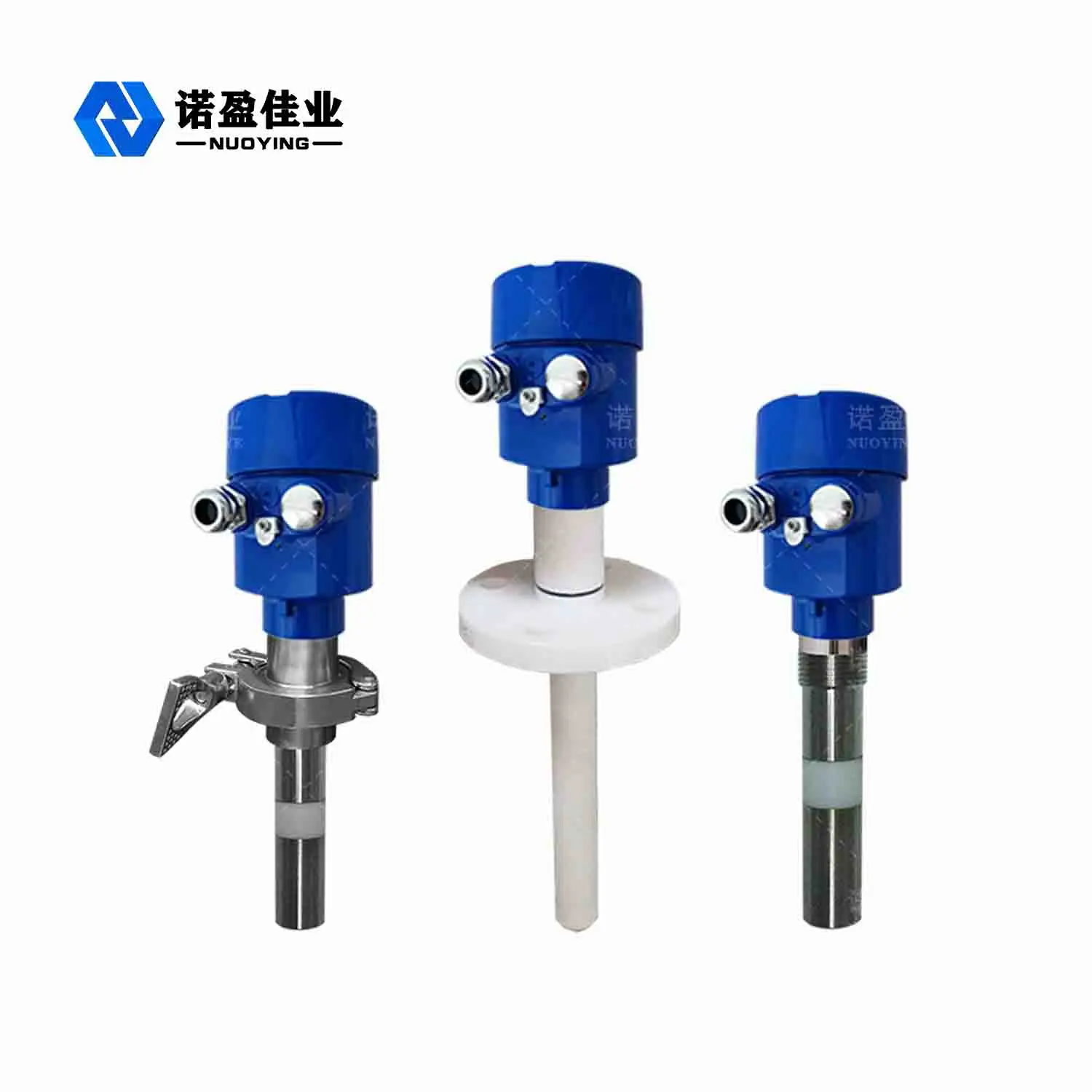

Nuoying NYDR RF Capacitive liquid level Switch

NYDR Product Details

Overview

Product Parameters

Nuoying NYDR RF Capacitive liquid level Switch Electric shock capacity Single point 250V8A Multi-point 250V 3A

Typical application	Solid powder, particle measurement
Measurement Range	120m
Power supply	24VDC, 220VAC(optional)
Environment temperature	-40~+80℃
Process temperature	-40~+1200℃
Process pressure	-0.1~2.5MPa
Process connection	Thread (optional)

Products Description

NYDR RF Capacitor Switch Working Principle

NYDR capacitance level switch is a highly intelligent level measurement product, which overcomes the inconvenience caused to customers by low alarm accuracy and complicated adjustment steps in previous measurement methods. The RF capacitance switch is widely used in chemical, metallurgical, petroleum, mechanical, food and foodstuff industries.

NYDR capacitance level switch adopts advanced digital intelligent compensation technology to convert the level change quantity in the vessel into capacitance change quantity. Inside the probe electrode There are two pole plates, the change of medium changes the dielectric constant between the electrodes, so as to get the change of electric capacity, and the electric capacity is converted into pulse digital signal by electronic plug-in, and the design of alarm point and the realization of alarm action are done by microprocessor.

Product details

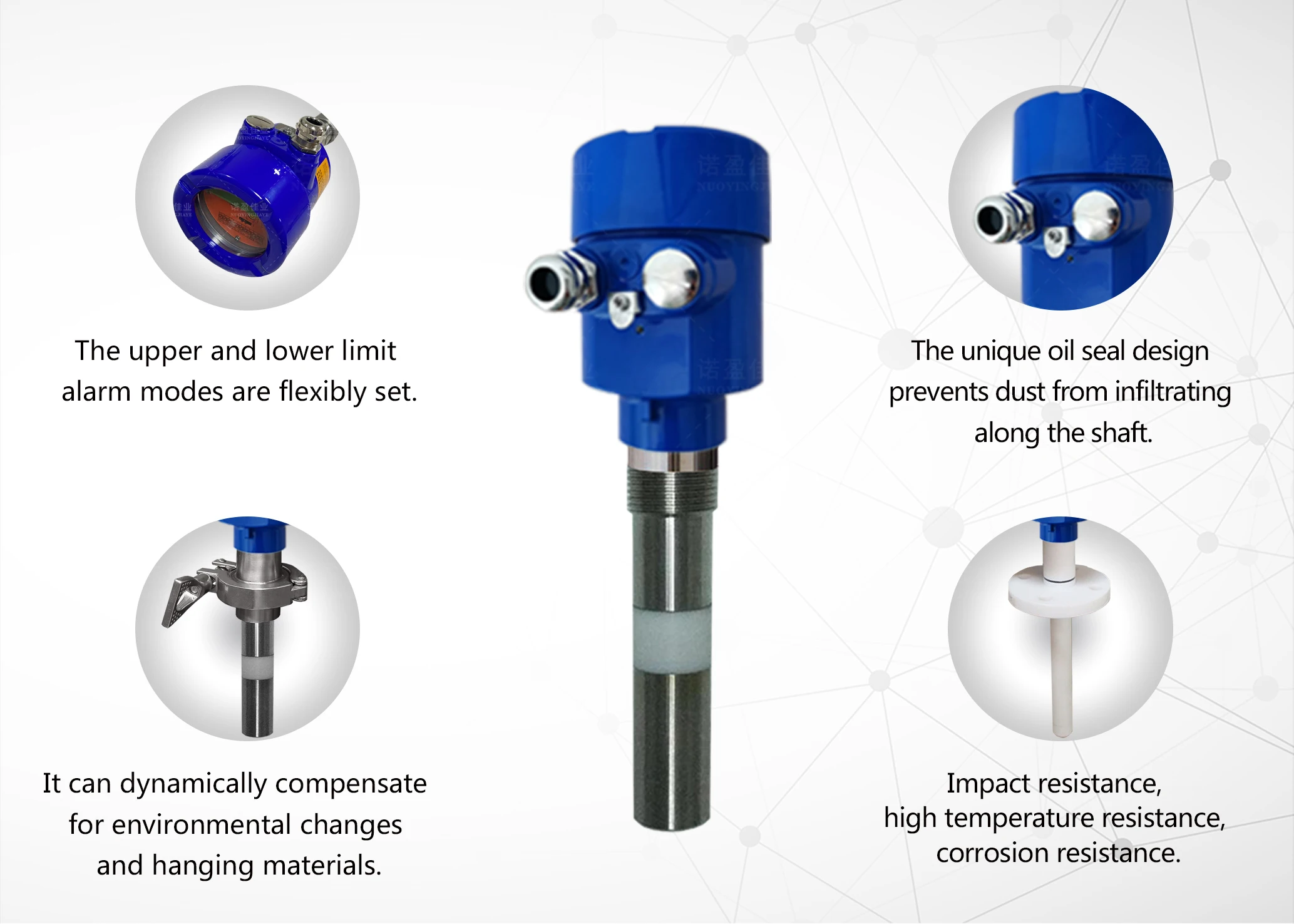

Product feature

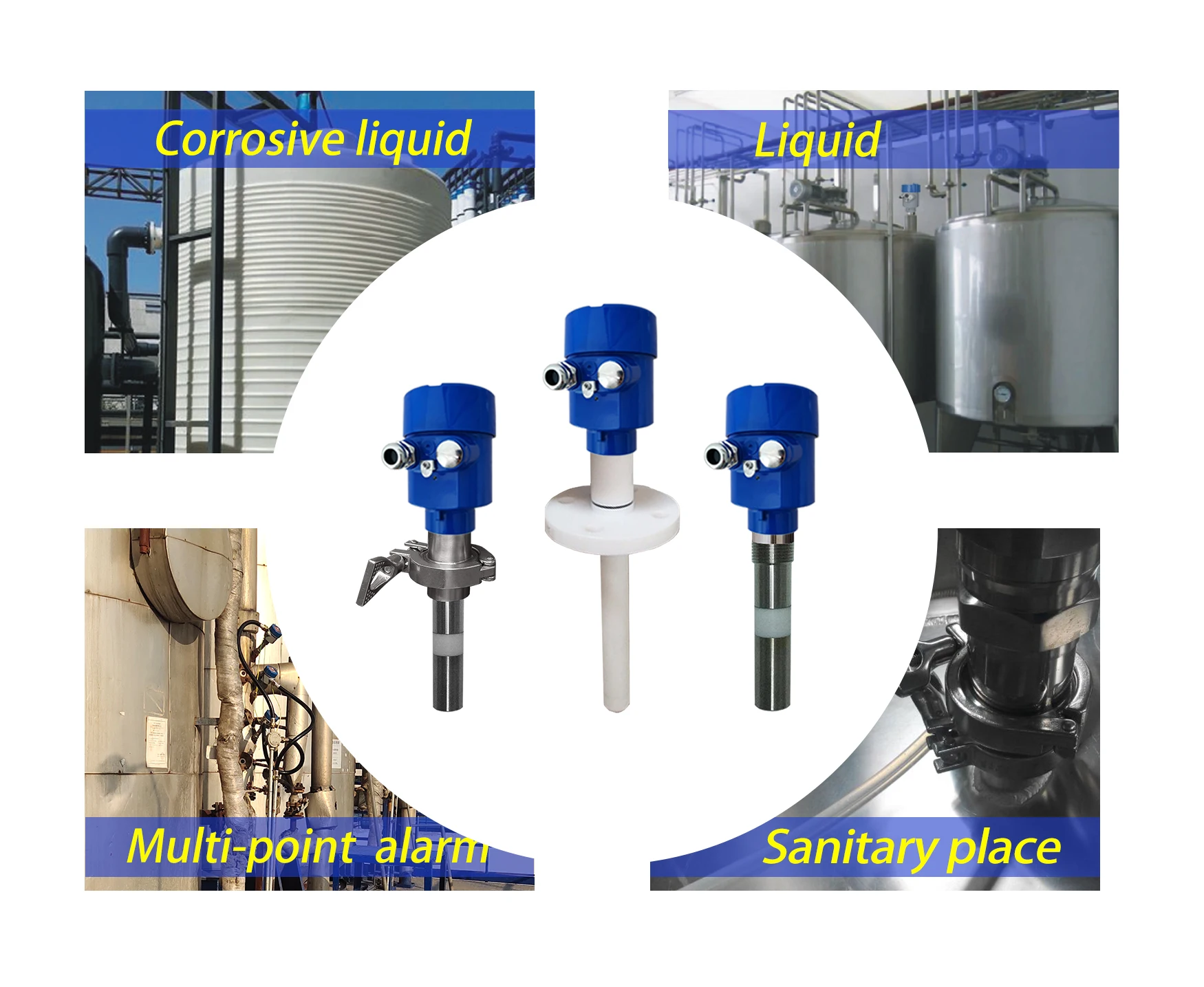

Various application

Cooperative customers

Product certificate

Nuoying NYDR RF Capacitive liquid level Switch Electric shock capacity Single point 250V8A Multi-point 250V 3A Images
