strong anti-interference IP68 Intelligent Electromagnetic Flow Meter 0.1-10m/S 4-20mA

  • 1
  • 2
  • 3

Brand Name : NUOYING

Model Number : NYLD

Certification : CE, SIL, ATEX

Place of Origin : Xi'an,Shaanxi,China

MOQ : 1pcs

Price : $1099to $1599/pcs

Payment Terms : T/T

Supply Ability : 1000pcs per month

Delivery Time : 5-7 working day

Packaging Details : 40*30*30cm

Grade : Industrial

Warranty : 12 months

Customized support : OEM, ODM

Media temperature : -20 ~+90

Power supply : 220VAC/ 24VDC

Repeatability error : ±0.1% of the measured value

Protection grade : Ip65, it can be customized up to IP68

Explosion-proof grade : ExdllCT6

Output signal : 4-20mA (load resistance 0~750), pulse/frequency, control level

Conductivity range : The conductivity ofthe measured fluid is ≥5μs/cm

Flow rate range : 0.1-10m/s

Contact Now

strong anti-interference IP68 Intelligent Electromagnetic Flow Meter 0.1-10m/S 4-20mA

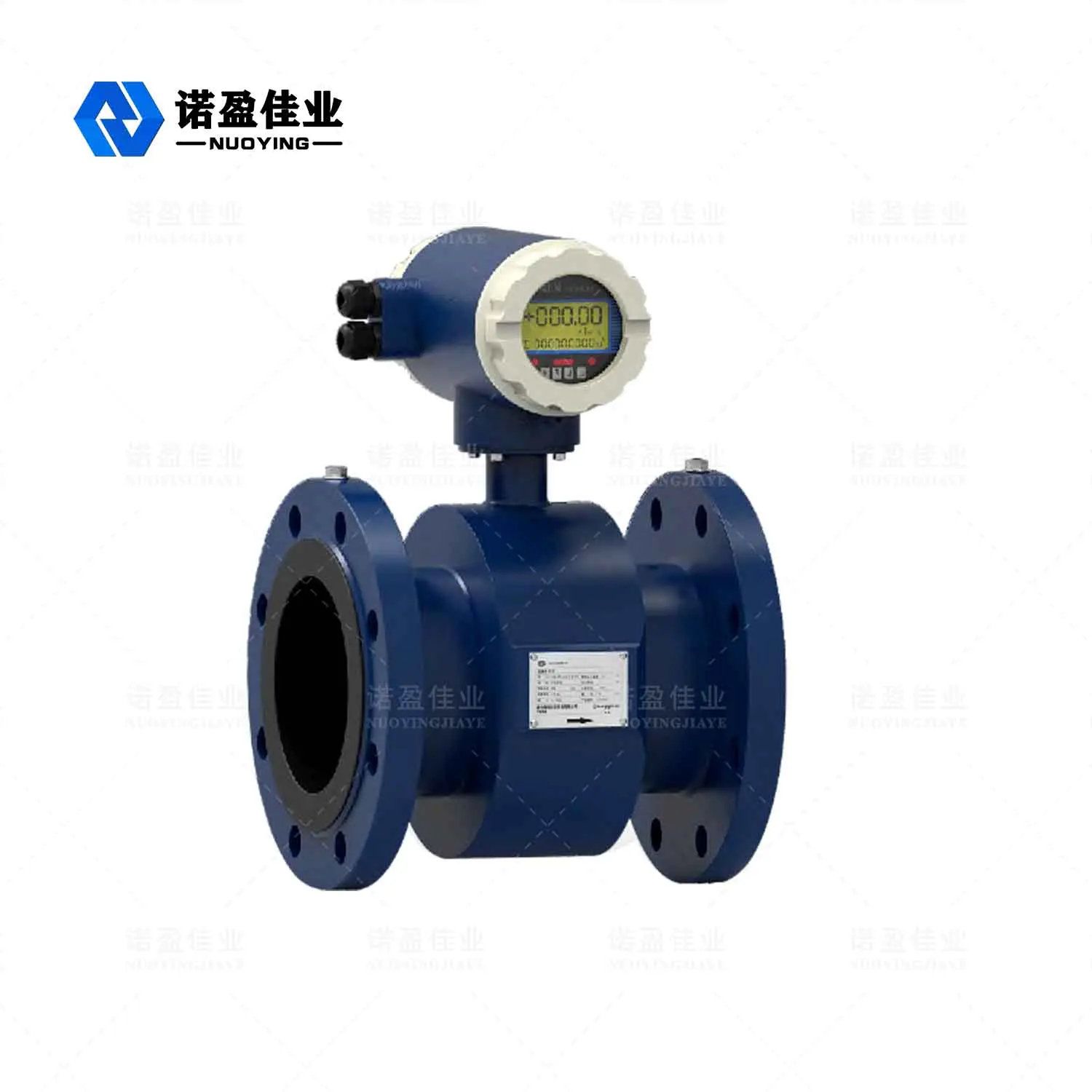

NYLD Electromagnetic Flow Meter

Overview
Products Description

NYLD Intelligent Eletromagnetic Flowmeter

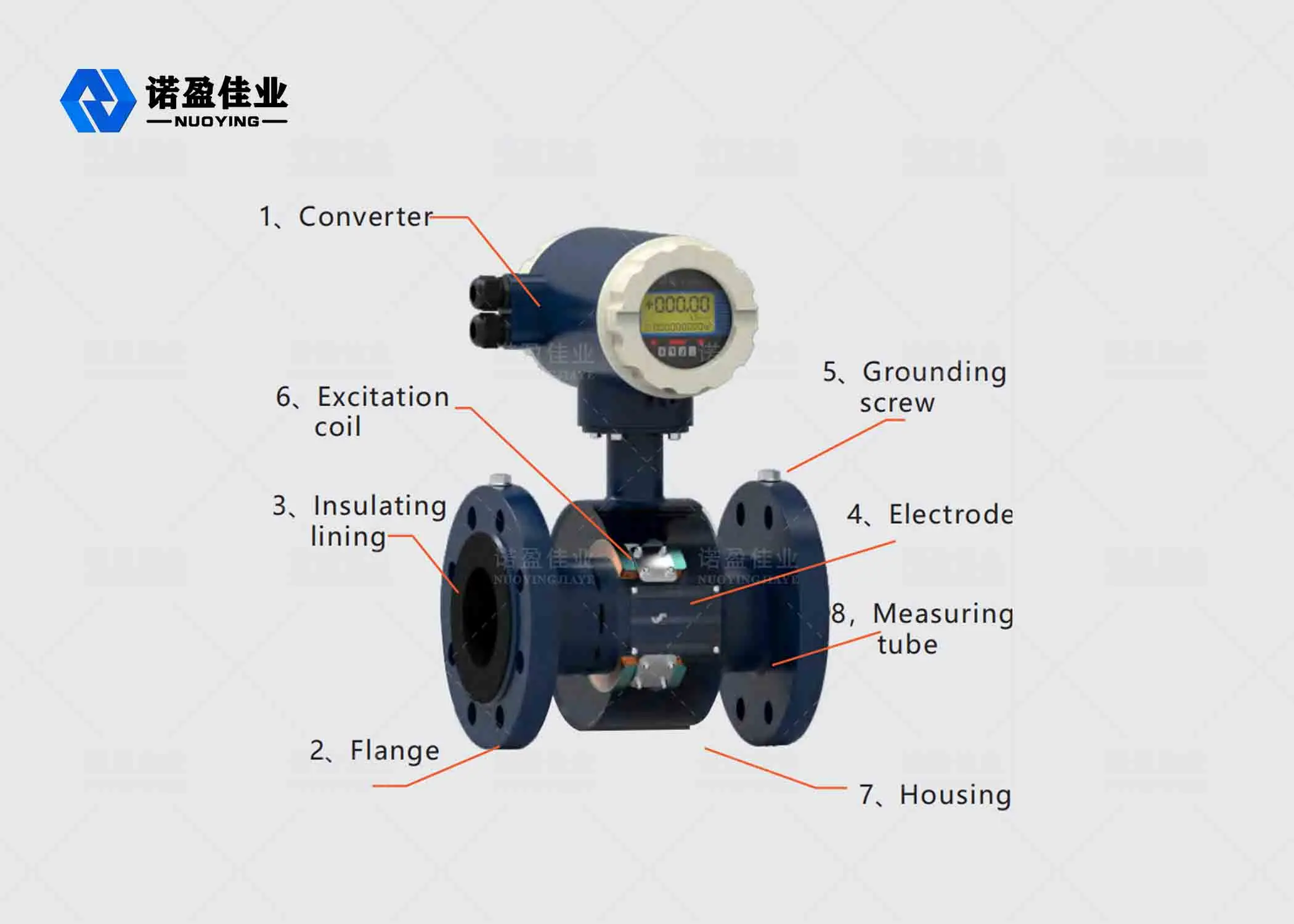

The NYLD intelligent type electromagnetic flowmeter consists of a sensor and a converter. It is based on Faraday's law of
electromagnetic induction, which is used to measure the volume flow of conductive liquid with conductivity greater than 5μs/cm. It is an inductive meter for measuring the volume flow of conductive medium. In addition to measuring the volume flow of general conductive liquid, it can also be used to measure the volume flow of strong corrosive liquids such as strong acid and alkali and uniform liquid-solid two-phase suspension liquid such as slurry, pulp and paper pulp. It is wdely used for flow measurement of petroleum, chemical, metallurgy, textile, papermaking, environmental protection, food and other industrial sectors and municipal management, water conservancy construction, rivers and other fields.
Product Parameters
strong anti-interference IP68 Intelligent Electromagnetic Flow Meter 0.1-10m/S 4-20mA
Signal output
4-20mA (load resistance 0~750Ώ), pulse/frequency, control level
Conductivity range
The conductivity ofthe measured fluid is ≥5μs/cm
Communication output
Rs485 communication MODBUS protocol, HART communication interface
Output signal
4-20mA (load resistance 0~750Ώ), pulse/frequency, control level
Protection grade
Ip65, it can be customized up to IP68
Ambient Temperature
－25～＋60℃
Explosion-proof grade
ExdllСT6
Product details
strong anti-interference IP68 Intelligent Electromagnetic Flow Meter 0.1-10m/S 4-20mA
Product feature
strong anti-interference IP68 Intelligent Electromagnetic Flow Meter 0.1-10m/S 4-20mA
Working condition
strong anti-interference IP68 Intelligent Electromagnetic Flow Meter 0.1-10m/S 4-20mA
Cooperative customers
strong anti-interference IP68 Intelligent Electromagnetic Flow Meter 0.1-10m/S 4-20mA
Certifications
strong anti-interference IP68 Intelligent Electromagnetic Flow Meter 0.1-10m/S 4-20mA
